vDAF
Spiral Vortex Flotation Separation System
A VORTEX-BASED FLOTATION SEPARATION SYSTEM THAT GENERATES THE MOST MICROBUBBLES

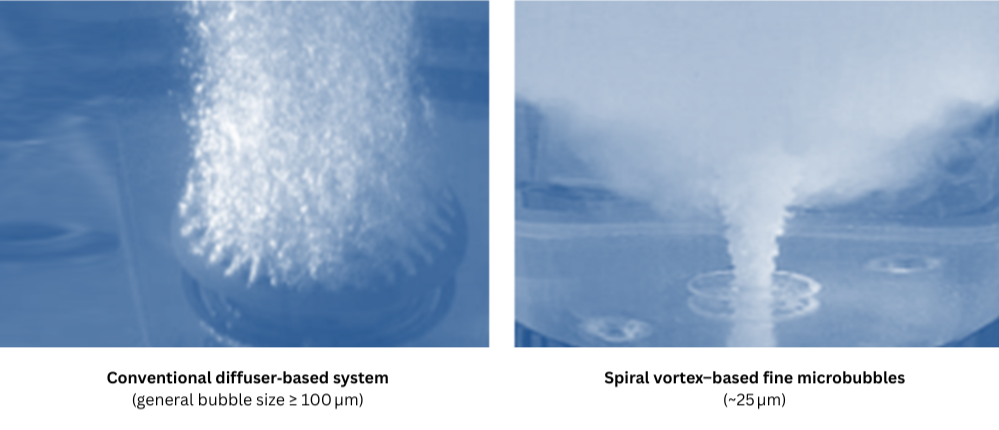

Generation of ultra-fine microbubbles using a spiral vortex and a bubble-generating nozzle
Average bubble diameter of 25 μm or less, bubble concentration of 100,000 bubbles/mL or more ( verified by the Korea Institute of Machinery and Materials)
State-certified performance certification technology (No. 27-422)
Why Ultrafine Bubbles?
The smaller the bubble size, the more effectively the system can float and remove even the tiniest particles
Increased opportunities for solids adhesion minimize the need for excessive coagulant dosing
Applications
We help our customers discover hidden benefits.
Tertiary wastewater treatment
Wastewater reuse
Traffic Separation Improvement Project
Gas dissolution
Features
Excellent SS Removal Rate
Ultra-fine bubble concentration over 5 times higher than that of competing products, minimizing sludge loss
Ultrafine bubbles generated by the high-speed collision of highly concentrated dissolved water remove even the finest particulate matter

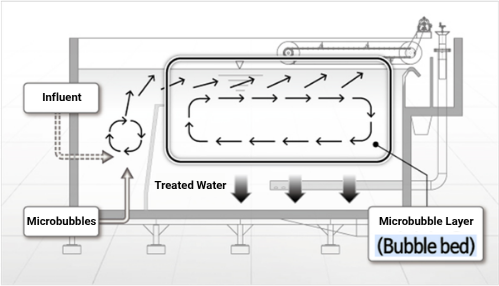

Forms a high-density bubble bed to minimize the settling of floating sludge and sludge loss
RETROFIT EXISTING DAF
Save energy up to 60%
150% increase in processing capacity compared to conventional reactors
Minimize the power required for bubble generation
Reduce coagulant dosing reduce the generation of sludge volume
Reduced operating and maintenance costs through increased reactor processing capacity
Power Consumption Comparison with Company N (Confirmed savings of up to 55% or more)
(Before improvement) Treatment capacity: 6.5 m3/hr
Operating hours: 24.0 hours/day
(After improvement) Treatment capacity: 9.5 m3/hr
Operating hours: 16.4 hours/day
Providing The Optimal Model For Each Application

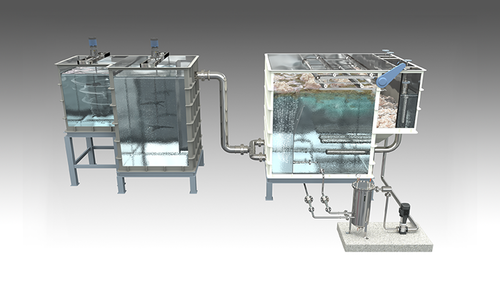

VDAF
A Buoyancy Separation System Using Ultrafine Bubbles
By attaching ultrafine bubbles to contaminants, this method achieves high flotation efficiency and fast processing speeds
- Wastewater (pretreatment, advanced treatment)
- Total phosphorus removal system
- Leachate treatment

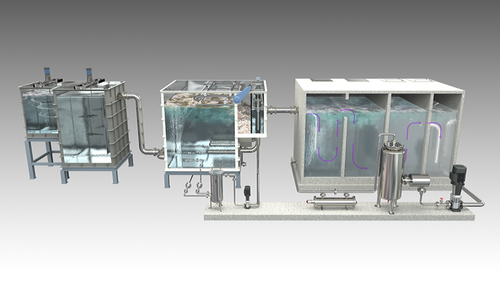

VDAF-03
Combining charge separation and ozone advanced oxidation (O₃+UV) into a single process
Removes over 90% of turbidity-causing substances and nutrients (T-P) and kills 100% of total coliform bacteria
- Advanced treatment of livestock manure
- Wastewater reuse facilities (for agricultural use)
- Treatment of difficult-to-degrade wastewater

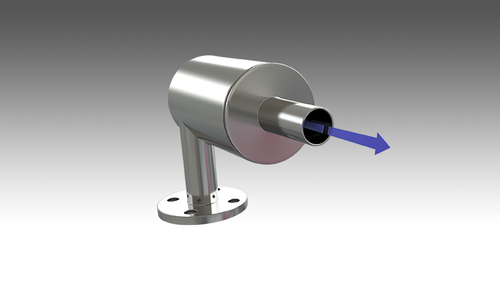

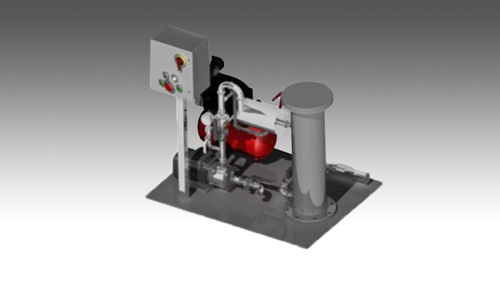

VGEN
High-Concentration Dissolved Water & Microbubble Generation System
Generates microbubbles in a short time using a high-performance dissolution device and specialized nozzles
- DAF Improvement Project
- Aquaculture (fish farms)
- Hydroponics
VMIXER
Low-Power, High-Efficiency Rotary Gas-Liquid Mixer
Rapidly dissolves gases (such as oxygen and ozone) using fluid centrifugal force and powerful vortices
- pH adjustment system (CO2)
- Treatment of difficult-to-degrade wastewater
- Various industries
Key Achievements

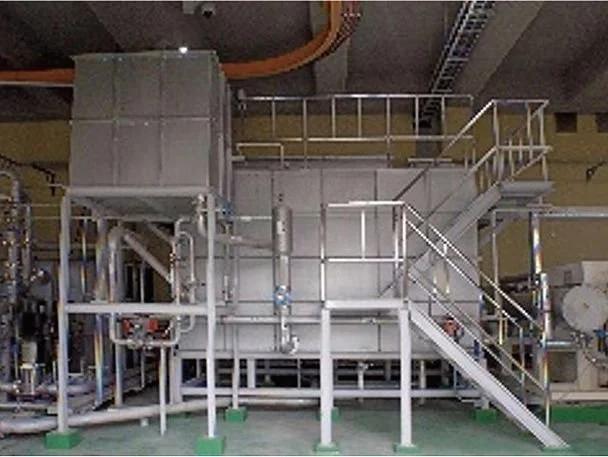

GS Caltex
Replaced under performing Induced Gas Flotation (IGF) units to vDAF for discharge compliance and reduce O&M expenses
Treatment capacity: 9,600 m³/day to 2.54 MGD
